Images and artwork¶

Images are pixels — photographs, scans, screenshots. Artwork is vector — logos, diagrams, charts — and stays vector in the PDF, sharp at any size.

Images¶

RasterImage photo = RasterImage.FromFile("photo.jpg");

Document document = Document.Compose(composition => composition.Section(section =>
{
    section.Trim = PaperSizes.A5;
    section.Margins = Sides.All(36);

    section.Body().Stack(stack =>
    {
        stack.SpaceBetween(12);
        stack.Add().Image(photo);
        stack.Add().Columns(columns =>
        {
            columns.Gutter(8);
            columns.Share().Height(80).Image(photo, ImageFitting.Proportionally);
            columns.Share().Height(80).Image(photo, ImageFitting.Stretch);
        });
    });
}));

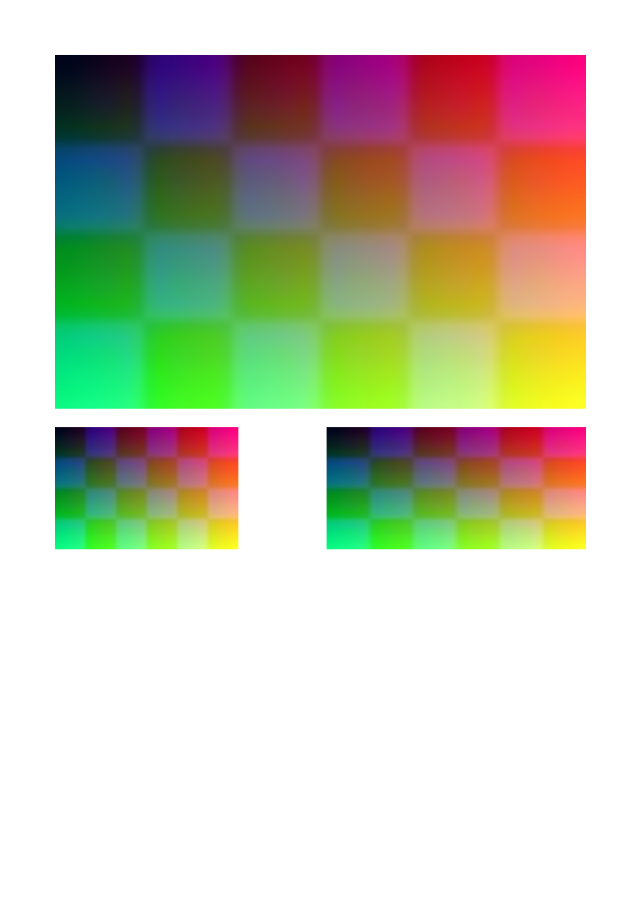

What this example sets

JPEG and PNG files — greyscale, RGB, CMYK, palettes, transparency, sixteen bits, ICC profiles — are embedded as they were encoded wherever PDF can carry them, so nothing is lost and nothing is recompressed. JPEGs are turned the right way up by their EXIF orientation. An image placed many times is embedded once.

`ImageFitting`	The image…
`FitWidth` (default)	Takes the frame's width, its height following in proportion
`FitHeight`	Takes the frame's height, its width following in proportion
`Proportionally`	Is as large as fits the frame, in proportion
`Stretch`	Fills the frame, in or out of proportion

Size and quality¶

Large photographs shown small can be scaled down to the resolution they are shown at, and recompressed, when they are embedded. Both need an image processor; the Rustaveli.Pdf.Raster package has one:

byte[] pdf = document.ExportPdf(new PdfExportOptions
{
    MaximumImageResolution = 150,
    ImageQuality = 80,
    ImageProcessor = SkiaImageProcessor.Instance,
});

The options apply to every image; photo.WithMaximumResolution(300).WithQuality(90) sets them for one.

Artwork from SVG¶

Artwork logo = Artwork.FromSvgFile("logo.svg");

section.Body().Width(120).Artwork(logo);

What this example sets

What drawing tools write is read: shapes and paths, fills and strokes with their dashes, transforms, clip paths, linear gradients, text, embedded images, use and viewBox, and styles given as attributes, style or style sheets. The artwork is drawn as PDF paths, not as a picture of them. Radial gradients are drawn in the mean of their colours; filters, masks, patterns and markers are left out.

Drawing artwork¶

Artwork.Draw makes artwork of a given size from paths, text and images:

Artwork badge = Artwork.Draw(120, 40, draw =>
{
    VectorPath outline = new VectorPath().AddRoundedRectangle(0, 0, 120, 40, Corners.All(20));
    draw.Fill(outline, Gradient.Across(Ink.Hex("#1E88E5"), Ink.Hex("#8E24AA")));
    draw.Stroke(outline, Ink.Hex("#0D47A1"), new LineStyle(1.5f));
    draw.Text("Approved", 60, 25, TypeStyle.Default.WithPointSize(14).Bold().WithInk(Ink.White), TextAnchor.Middle);
});

section.Body().Width(120).Artwork(badge);

What this example sets

Coordinates run from the top left, in points. VectorPath builds shapes from lines, Bézier curves and arcs; SaveState, Translate, Scale, Rotate and Clip work as in any vector drawing API.

Made for their box¶

Artwork or an image can be made when layout knows the box it will fill — a chart drawn to the exact size of its frame, say:

section.Body().Height(160).Artwork(size => Artwork.FromSvg(FormattableString.Invariant(
    $"""
    <svg xmlns="http://www.w3.org/2000/svg" width="{size.Width}" height="{size.Height}">
      <rect x="0" y="{size.Height * 0.4}" width="{size.Width / 3}" height="{size.Height * 0.6}" fill="#43A047"/>
      <rect x="{size.Width / 3}" y="{size.Height * 0.1}" width="{size.Width / 3}" height="{size.Height * 0.9}" fill="#1E88E5"/>
      <rect x="{size.Width * 2 / 3}" y="{size.Height * 0.7}" width="{size.Width / 3}" height="{size.Height * 0.3}" fill="#FB8C00"/>
    </svg>
    """)));

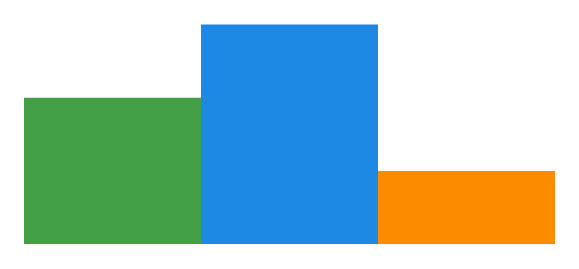

What this example sets

Numbers written into SVG take a decimal point whatever the culture the program runs in, so the text is formatted with FormattableString.Invariant: in a culture that writes a decimal comma, 123,45 is no length SVG can read.

Image(request => ...) does the same for pixels: it is asked for an image of request.PixelWidth by request.PixelHeight, at the export's ImageResolution, and returns the encoded bytes.

Placeholders¶

While a document is being designed, Placeholder("Photo") stands in for an image not there yet, and SampleData provides stand-in words, names, numbers, dates and images — the same every time for the same seed.
