Getting started¶

Packages¶

Package	Adds	Depends on
`Rustaveli.Pdf`	Layout, text, images, PDF export — everything most documents need	nothing
`Rustaveli.Pdf.Raster`	Pages as PNG, JPEG or WebP; image recompression for PDF export	SkiaSharp
`Rustaveli.Pdf.Shaping`	Arabic, Hebrew points, Indic and South-East Asian scripts	HarfBuzzSharp
`Rustaveli.Pdf.Operations`	Working with existing PDF files: merging, stamping, attaching, protecting	nothing
`Rustaveli.Pdf.Preview`	A live preview in the browser, redrawn on hot reload	`Rustaveli.Pdf.Raster`

dotnet add package Rustaveli.Pdf

Every package targets .NET 10 and .NET Standard 2.0, so it runs on .NET Framework 4.7.2 and later too. Everything public is in the Rustaveli.Pdf namespace.

A first document¶

using Rustaveli.Pdf;

Document document = Document.Compose(composition => composition.Section(section =>
{
    section.Trim = PaperSizes.A5;
    section.Margins = Sides.All(15.Millimetres());
    section.DefaultType = TypeStyle.Default.WithTypeface("Noto Sans").WithPointSize(12);

    section.Body().Text("Hello from Rustaveli.Pdf.");
}));

document.ExportPdf("hello.pdf");

What this example sets

A document is composed of sections. A section is a run of pages sharing one page setup: its Trim (the page size), its Margins, the DefaultType its text is set in, and the frames every page is made of:

Frame	What goes there
`RunningHead()`	Repeated at the top of every page
`Body()`	The main content, flowing on to as many pages as it needs
`RunningFoot()`	Repeated at the bottom of every page
`Underlay()`, `Overlay()`	Drawn beneath or above everything, ignoring the margins — watermarks, page furniture

Lengths are in points, 72 to the inch; Millimetres(), Centimetres(), Inches() and Picas() convert.

Frames¶

Everything is set into a frame. A frame takes any number of modifiers — each wraps it and hands back the frame inside — and then exactly one piece of content, which ends the chain:

Document document = Document.Compose(composition => composition.Section(section =>
{
    section.Trim = PaperSizes.A5;
    section.Margins = Sides.All(40);

    section.Body().Stack(stack =>
    {
        stack.Add()
            .Stroke(1)
            .StrokeInk(Ink.Hex("#1565C0"))
            .RoundCorners(6)
            .Fill(Ink.Hex("#E3F2FD"))
            .Inset(12)
            .Text("A note, inset from a rounded, filled and stroked frame.");
    });
}));

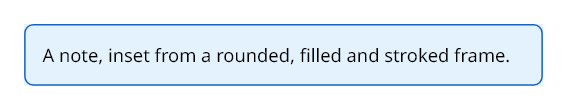

What this example sets

Order matters as it would with real frames: the fill above is inside the stroke, and the inset inside the fill. Content that holds several frames — a Stack, Columns, a Table — hands out a new frame for each, and so on down. A frame fills the room it is given: the body is the whole text area, but an item of a stack is only as tall as its content, so the note above is too. Layout covers all of them.

Reusing parts of a document¶

A piece of layout used more than once is a snippet: a class that composes into the frame it is given.

public sealed class AddressBlock(string name, params string[] lines) : ISnippet
{
    public void Compose(IFrame frame) => frame.Text(text =>
    {
        text.Line(name).Bold();

        foreach (string line in lines)
            text.Line(line);
    });
}

Document letter = Document.Compose(composition => composition.Section(section =>
{
    section.Trim = PaperSizes.A4;
    section.Margins = Sides.All(25.Millimetres());

    section.Body().Stack(stack =>
    {
        stack.SpaceBetween(24);
        stack.Add().Snippet(new AddressBlock("Tamar Beridze", "12 Rustaveli Avenue", "Tbilisi 0108"));
        stack.Add().Text("Dear Tamar,");
    });
}));

What this example sets

Exporting¶

byte[] bytes = document.ExportPdf();

using (FileStream stream = File.Create("to-a-stream.pdf"))
    document.ExportPdf(stream);

document.ExportPdf("to-a-file.pdf");

ExportPdfAndOpen() writes a temporary file and opens it in the system's viewer, for a quick look while writing. The document's title, author and the rest go in Document.Info:

document.Info.Title = "Hello";
document.Info.Author = "Rustaveli.Pdf";
document.Info.Language = "en";

Each export lays the document out afresh, so one document can be exported as often as needed, in any format, and from any number of threads at once: an export that begins while another is under way runs the composing code again for a copy of its own, so keep that code free of side effects.

Output covers the options: typefaces, image quality, PDF/A, PDF/UA, protection, and page images.

Next¶

Layout: stacks, columns, tables, lists, and how content flows across pages
Text: paragraphs, type styles, typefaces and style sheets
Preview and debugging: see the document as you write it
